Motala 2000 Platform Lift – Largest Inside, Smallest Outside

A quietly powerful platform lift, designed for commercial environments where space matters. The Motala 2000 platform lift offers generous internal dimensions with a minimal footprint. We’re here to help you find the right fit, every step of the way.

Request a Quote Speak to our team

On both occasions we have worked with Invalifts, the work has been carried out professionally and efficiently. From the outset to completion a fantastic job.

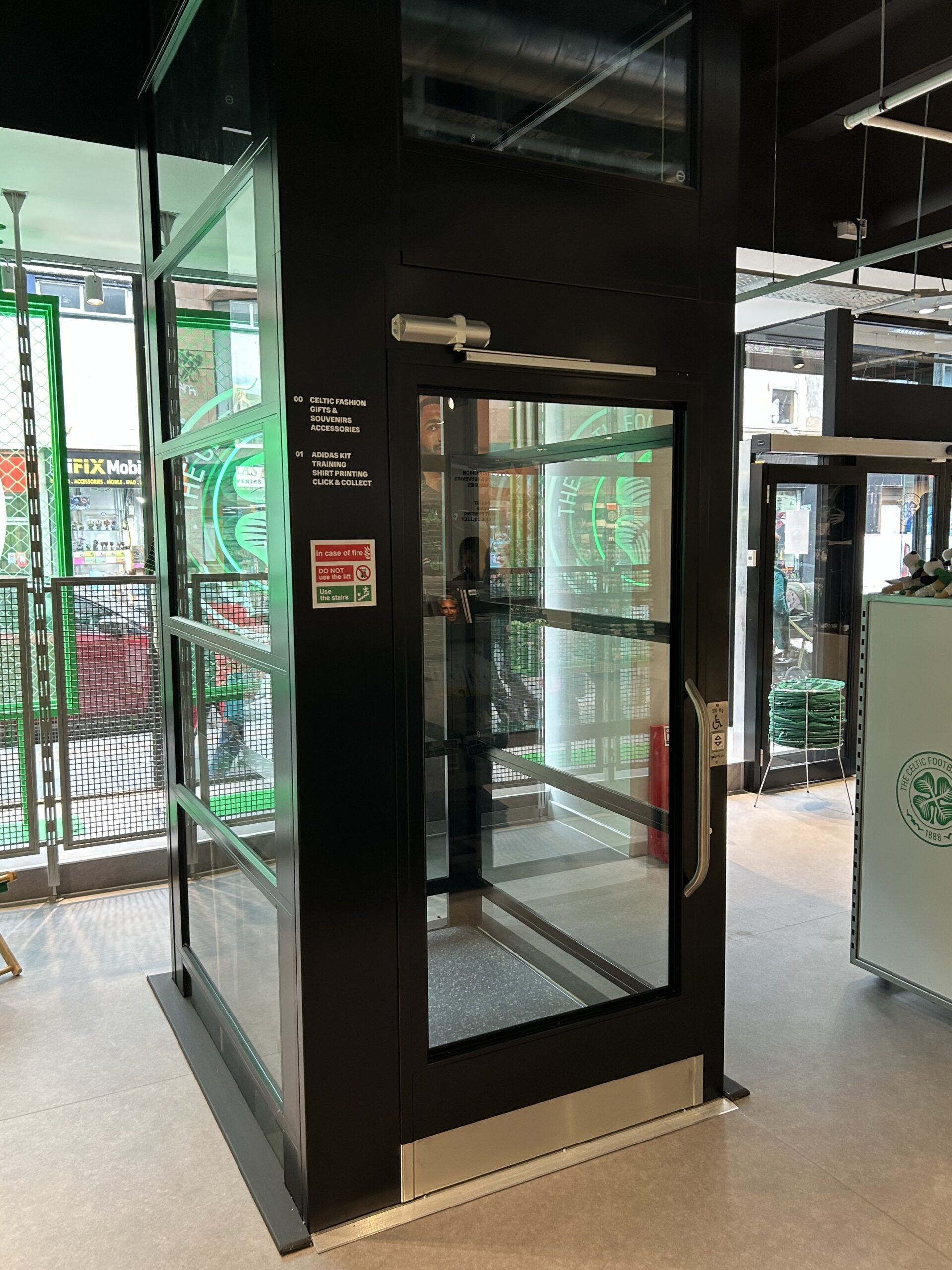

Motala 2000 Platform Lifts

Here at Invalifts, our Motala platform lifts are renowned for their high build quality that is designed to not only meet but exceed our client’s expectations. The number of applications for 2000 platform lifts is endless. From schools to hospitals, care homes, and industrial facilities, our lifts offer an effective accessibility solution for a competitive cost.

Our highly-skilled engineers have extensive experience installing platform lifts and we pride ourselves on working closely with our clients and offering an all-encompassing accessibility solution. So, whether you need brand-new commercial vertical platform lifts or the removal and replacement of an old one, our team can help.

SPEAK TO OUR TEAM  REQUEST A QUOTE

  • Standard Features
    • 500kg capacity aimed at a wheelchair passenger and attendant
    • Free standing structure
    • Standard platform size of 1120mm wide X 1480mm long
    • Standard installation space of 1280mm wide X 1590mm long *(Special platform sizes are available)
    • Landing doors 900mm wide X 2000mm high
    • 60mm recess in lower landing
    • Emergency battery lowering
    • Energy saving LED lighting in ceiling
    • 240v power supply
    • Manual doors with self-closers

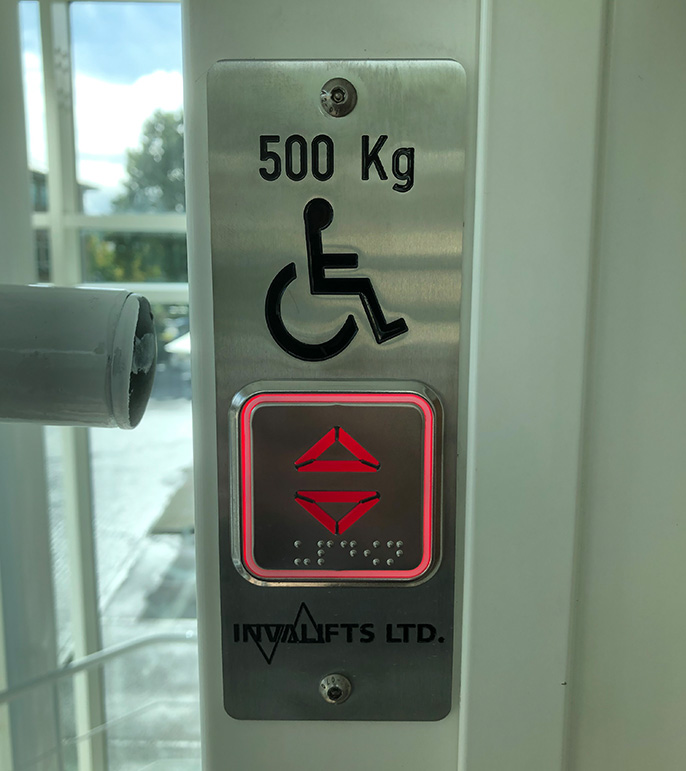

    • One touch call button on each landing
    • Constant pressure tactile pushes on the platform in Braille pushes
  • Optional Features
    • Glazing on 4 sides with option of clear, smoked or opaque glazing
    • XL Size platform of 1280mm wide X 1680mm long
    • 1 Hour fire rated landing doors
    • Intelligent automatic doors
    • Hidden door closers
    • 2 Semi standard RAL colours-RAL 9005 (Jet Black) & RAL 7016 (Graphite Grey)
    • Any alternative standard RAL colour Available
    • School locking / Key switch facility
    • Emergency intercom, auto dialler or GSM auto dialler
    • Contrasting colour doors
    • Voice announcement in English (Welsh available)
    • Alternative platform finishes including wood effect
    • Half height gate option below 3000mm floor to floor
    • Ramp supplied at lower landing instead of a 60mm recess
    • Wireless remote push button on landings
  • Colours
    • 2 Semi standard RAL colours-RAL 9005 (Jet Black) & RAL 7016 (Graphite Grey)
    • Any alternative standard RAL colour Available
  • Alternative Platform Footprint Sizes

    Our standard platform size is 1120mm wide X 1480mm long which requires an installation space of 1280mm wide X 1590mm long, however we have 2 alternative platform widths, a semi standard alternative platform depth.

    Platform Size Footprint
    Chain Drive Platform Lift
    1020mm x 1480mm 1180mm x 1590mm
    1120mm x 1480mm* 1280mm x 1590mm
    1220mm x 1480mm 1380mm x 1590mm
    XL Chain Drive Platform Lift
    1020mm x 1680mm 1180mm x 1790mm
    1120mm x 1680mm 1280mm x 1790mm
    1220mm x 1680mm 1380mm x 1790mm

    *Part M compliant Platform size

    As one of the many special features of the Motala 2000, we can offer a reduced platform depth to fit into existing or reduced openings, with the option of reducing the overall usable platform depth down to 900mm deep. Please speak to our team about this option.

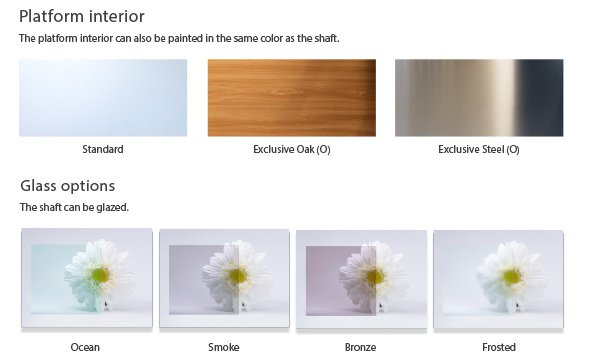

  • Doors, Platform Interior, Glass Options

    Width 800, 900 or 1000 mm. Height 1900, 2000 or 2100 mm
    Can be fitted on three sides.



  • Flooring

    Motala 2000 design can be adapted in many different ways to blend in with modern architecture and environments.



  • Installation & Removals

    We have over 25 years of platform lift installation experience. What that has brought us is the knowledge, experience and expertise to complete platform lift installations efficiently and to the industry’s highest standard.

    As part of the installation of a new platform lift, we can often offer a removal package to safely remove an old or non-functioning platform lift ready for the installation of one of our new platform lifts.

  • Downloads

Discover More

Our Clients

Gallery

Explore our gallery of lifts, click on an image below to find out more.

  • PLA
  • PLA
  • Commercial lifts image 2
  • commercial lifts resized 3

Commercial Wheelchair Lifts

Here at Invalifts, we specialise in the design, construction and delivery of high quality, access solutions, including commercial vertical platform lifts.  From hospitals to residential properties and industrial facilities, our commercial lifts are an effective transportation method for people or goods. Our vertical platform lifts are fully DDA compliant, as well as adhering to modern building regulations and health and safety stipulations.

You can be sure that the commercial wheelchair lifts are delivered and installed by our team are great quality and functionality whilst being fully compliant. If you wish to discuss our commercial wheelchair lifts range in greater detail, or how we can support your needs for vertical platform lifts, call us today on 01827 438 797.

SPEAK TO OUR TEAM  REQUEST A QUOTE

FAQs

  • WHAT CAN COMMERCIAL LIFTS BE USED FOR?

    In a number of commercial applications, commercial lifts are not only important but integral. Broadly, they ensure operations within a facility can continue without interruption. You are likely to find this type of lift in a number of commercial settings, such as a retail centre, an office, a hotel, a hospital or a warehouse.

    They offer transportation assistance for goods or people, whilst also catering to those that would otherwise find the environment challenging because of mobility issues. In some facilities, such as an industrial site, they may also ensure compliance with regulations.

    Designed to support a facility, streamline operations and optimise efficiency, a high quality commercial lift is the backbone of many commercial and industrial environments.

  • WHAT WARRANTY DO YOU OFFER ON COMMERCIAL LIFTS

    We understand that investing in a commercial lift is a big step, especially for smaller commercial or industrial facilities. This is made more daunting by the prospect of the lift breaking down or experiencing technical faults, which can be costly to repair.

    This is why we offer warranties of 5 or 10 years, as standard, across our entire range. We have complete confidence in our products, as all have been engineered to a leading standard and tested rigorously. As such, you can purchase one of our lifts with complete confidence in its ability to perform without fault.

    And should any complications occur, you are backed by our extended warranties.
    We aim to ensure our lifts are safe and reliable for years of constant use. See our warranty information booklet for more information about our warranties.

  • WHAT HAPPENS IF MY LIFT BREAKS DOWN?

    A sudden breakdown can be challenging, especially if facility operations are reliant on the lift being operational. An out of use product in a retail environment, for example, can negatively impact revenue and customer satisfaction significantly. Thankfully, our team is always on hand to generate and deliver a solution.

    If your lift breaks down, all you need to do is contact us. We have a team of highly experienced and fully trained service engineers who can quickly diagnose and resolve any issues you may be experiencing.

    Across our varied commercial portfolio, we have supported clients through a wide range of technical and mechanical issues. As such, we are confident in our ability to resolve the problem regardless of the scale or complexity of the task.Whether you have a platform lift, a wheelchair stair lift, an external lift or anything in between, we will happily and quickly solve your problem.
