Motala 2000 Cabin Platform Lift – Largest Inside, Smallest Outside

A sleek and efficient platform lift built for commercial settings where every inch counts. The Motala 2000 Cabin delivers spacious interior comfort without taking up much room. Count on us to guide you through the process, from start to finish.

Request a Quote Speak to our team

On both occasions we have worked with Invalifts, the work has been carried out professionally and efficiently. From the outset to completion a fantastic job.

Motala 2000 Cabin Platform Lifts

The Motala 2000 Cabin platform lift stands out for its exceptional craftsmanship and reliability. Engineered to exceed expectations, it provides a practical and cost-effective accessibility solution across a wide range of environments — from schools and hospitals to care homes and industrial sites.

Our expert engineers bring years of hands-on experience and are committed to delivering tailored solutions. Whether you’re installing a new vertical platform lift or upgrading an existing one, we work closely with you to ensure a seamless process from consultation to completion.

SPEAK TO OUR TEAM  REQUEST A QUOTE

  • Standard Features
    • 440kg capacity aimed at a wheelchair passenger and attendant
    • Free standing structure
    • Standard platform size of 1120mm wide X 1480mm long
    • Standard installation space of 1280mm wide X 1590mm long
    • Landing doors 900mm wide X 2000mm high
    • 70mm recess in lower landing
    • Emergency battery lowering

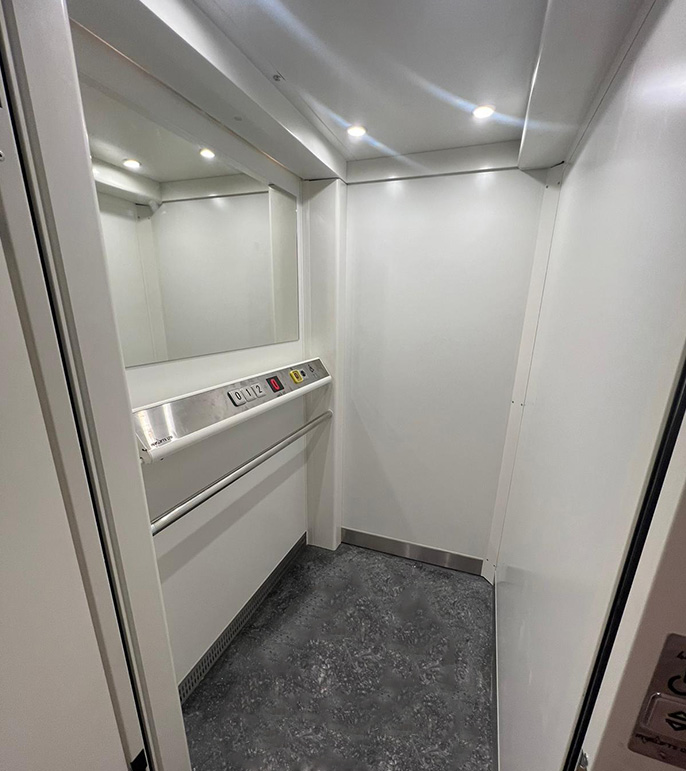

    • Energy saving LED lighting in ceiling
    • 240v power supply

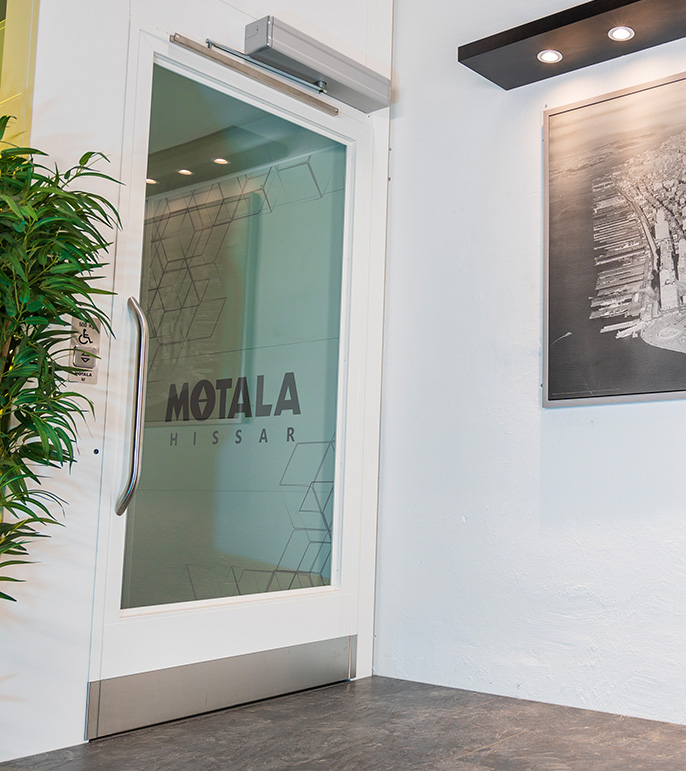

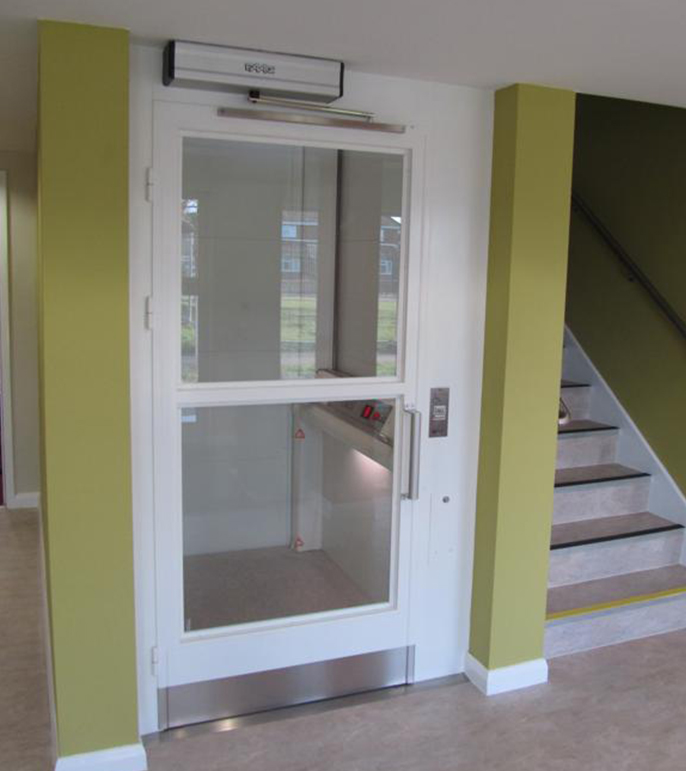

    • Manual doors with self-closers

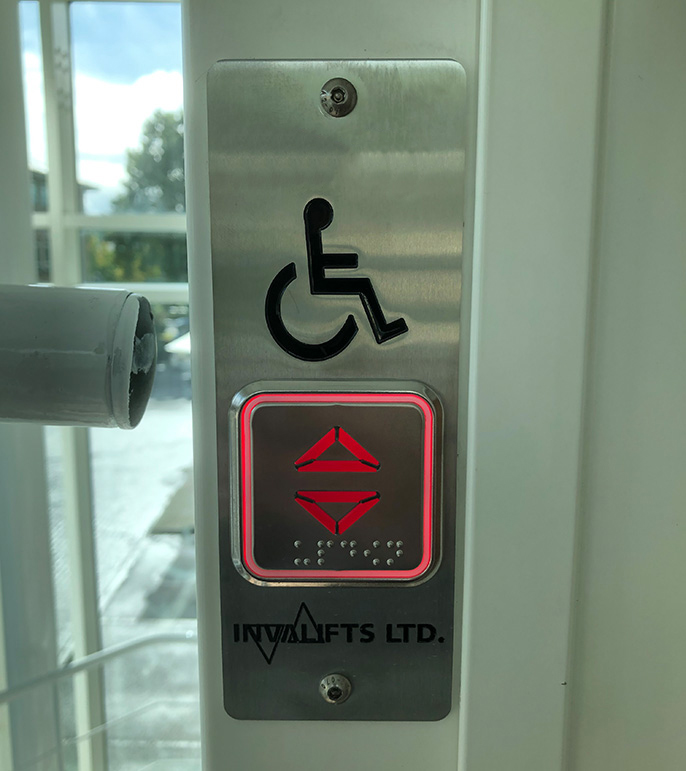

    • One touch call button on each landing
    • One touch call button in cabin with Braille
  • Optional Features
    • Glazing on 4 sides with option of clear, smoked or opaque glazing

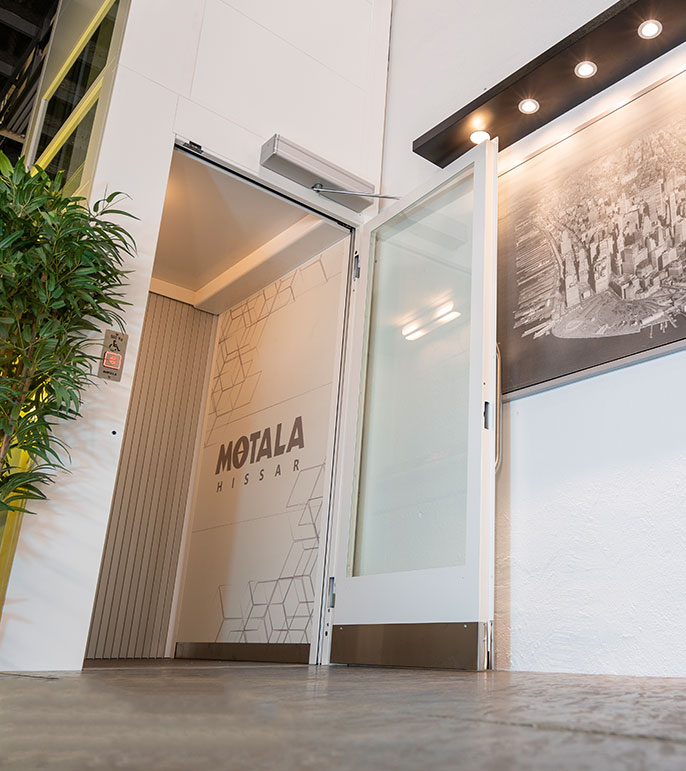

    • Intelligent automatic doors
    • Hidden door closers
    • 2 Semi standard RAL colours-RAL 9005 (Jet Black) & RAL 7016 (Graphite Grey)
    • Any alternative standard RAL colour Available
    • School locking / Key switch facility
    • Emergency GSM auto dialler
    • Contrasting colour doors
    • Voice announcement in English (Welsh available)
    • Ramp supplied at lower landing instead of a 70mm recess
    • Wireless remote push button on landings
  • Colours
    • 2 Semi standard RAL colours-RAL 9005 (Jet Black) & RAL 7016 (Graphite Grey)
    • Any alternative standard RAL colour Available
  • Alternative Platform Footprint Sizes

    Our standard platform size is 1120mm wide X 1480mm long which requires an installation space of 1280mm wide X 1590mm long, however we have an alternative platform depth, which is 1680mm.

    Platform Size Footprint
    Chain Drive Platform Lift
    1100mm x 1400mm* 1280mm x 1590mm
    XL Chain Drive Platform Lift
    1100mm x 1600mm 1280mm x 1790mm

    *Part M compliant Platform size

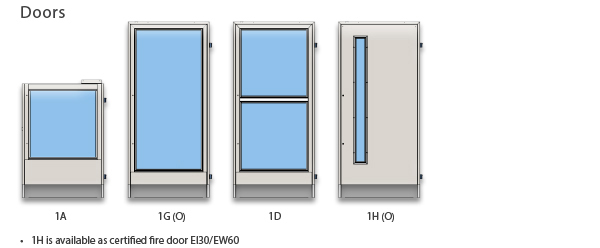

  • Doors, Platform Interior, Glass Options

    Width 900 mm. Height 2000 or 2100 mm

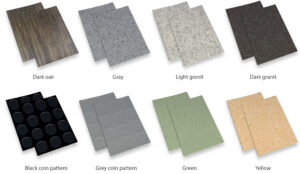

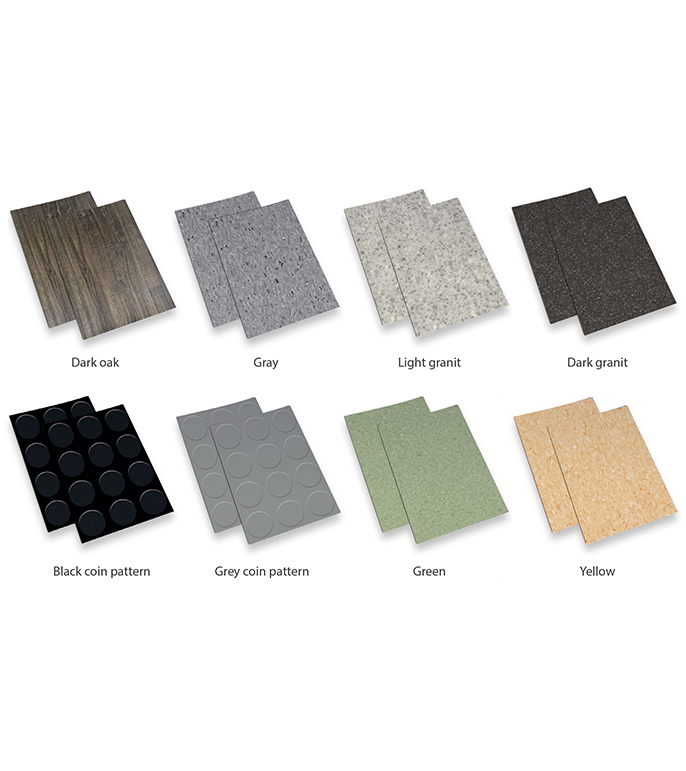

  • Flooring

    Motala 2000 Cabin design can be adapted in many different ways to blend in with modern architecture and environments.



  • Installation & Removals

    We have over 25 years of platform lift installation experience. What that has brought us is the knowledge, experience and expertise to complete platform lift installations efficiently and to the industry’s highest standard.

    As part of the installation of a new platform lift, we can often offer a removal package to safely remove an old or non-functioning platform lift ready for the installation of one of our new platform lifts.

  • Downloads

Discover More

Our Clients

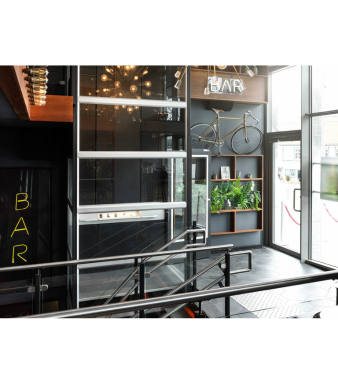

Gallery

Explore our gallery of lifts, click on an image below to find out more.

  • PLA
  • PLA
  • Commercial lifts image 2
  • commercial lifts resized 3

Commercial Wheelchair Lifts

Here at Invalifts, we specialise in the design, construction and delivery of high quality, access solutions, including commercial vertical platform lifts.  From hospitals to residential properties and industrial facilities, our commercial lifts are an effective transportation method for people or goods. Our vertical platform lifts are fully DDA compliant, as well as adhering to modern building regulations and health and safety stipulations.

You can be sure that the commercial wheelchair lifts are delivered and installed by our team are great quality and functionality whilst being fully compliant. If you wish to discuss our commercial wheelchair lifts range in greater detail, or how we can support your needs for vertical platform lifts, call us today on 018272 86860.

SPEAK TO OUR TEAM  REQUEST A QUOTE

FAQs

  • WHAT CAN COMMERCIAL LIFTS BE USED FOR?

    In a number of commercial applications, commercial lifts are not only important but integral. Broadly, they ensure operations within a facility can continue without interruption. You are likely to find this type of lift in a number of commercial settings, such as a retail centre, an office, a hotel, a hospital or a warehouse.

    They offer transportation assistance for goods or people, whilst also catering to those that would otherwise find the environment challenging because of mobility issues. In some facilities, such as an industrial site, they may also ensure compliance with regulations.

    Designed to support a facility, streamline operations and optimise efficiency, a high quality commercial lift is the backbone of many commercial and industrial environments.

  • WHAT WARRANTY DO YOU OFFER ON COMMERCIAL LIFTS

    We understand that investing in a commercial lift is a big step, especially for smaller commercial or industrial facilities. This is made more daunting by the prospect of the lift breaking down or experiencing technical faults, which can be costly to repair.

    This is why we offer warranties of 5 or 10 years, as standard, across our entire range. We have complete confidence in our products, as all have been engineered to a leading standard and tested rigorously. As such, you can purchase one of our lifts with complete confidence in its ability to perform without fault.

    And should any complications occur, you are backed by our extended warranties.
    We aim to ensure our lifts are safe and reliable for years of constant use. See our warranty information booklet for more information about our warranties.

  • WHAT HAPPENS IF MY LIFT BREAKS DOWN?

    A sudden breakdown can be challenging, especially if facility operations are reliant on the lift being operational. An out of use product in a retail environment, for example, can negatively impact revenue and customer satisfaction significantly. Thankfully, our team is always on hand to generate and deliver a solution.

    If your lift breaks down, all you need to do is contact us. We have a team of highly experienced and fully trained service engineers who can quickly diagnose and resolve any issues you may be experiencing.

    Across our varied commercial portfolio, we have supported clients through a wide range of technical and mechanical issues. As such, we are confident in our ability to resolve the problem regardless of the scale or complexity of the task.Whether you have a platform lift, a wheelchair stair lift, an external lift or anything in between, we will happily and quickly solve your problem.
