Platform Stairlifts for Straight and Curved Staircases

When stairs make accessible movement through a building difficult, the Ascendor PLG7 & PLK8 provide wheelchair access along the existing staircase. Both fold neatly away when parked and can be installed indoors or outside. The PLG7 handles straight flights, while the PLK8 tackles curves, intermediate landings, and more involved routes.

Get a Quote Call Our Team

“I cannot praise the engineer enough. He had an extremely positive attitude

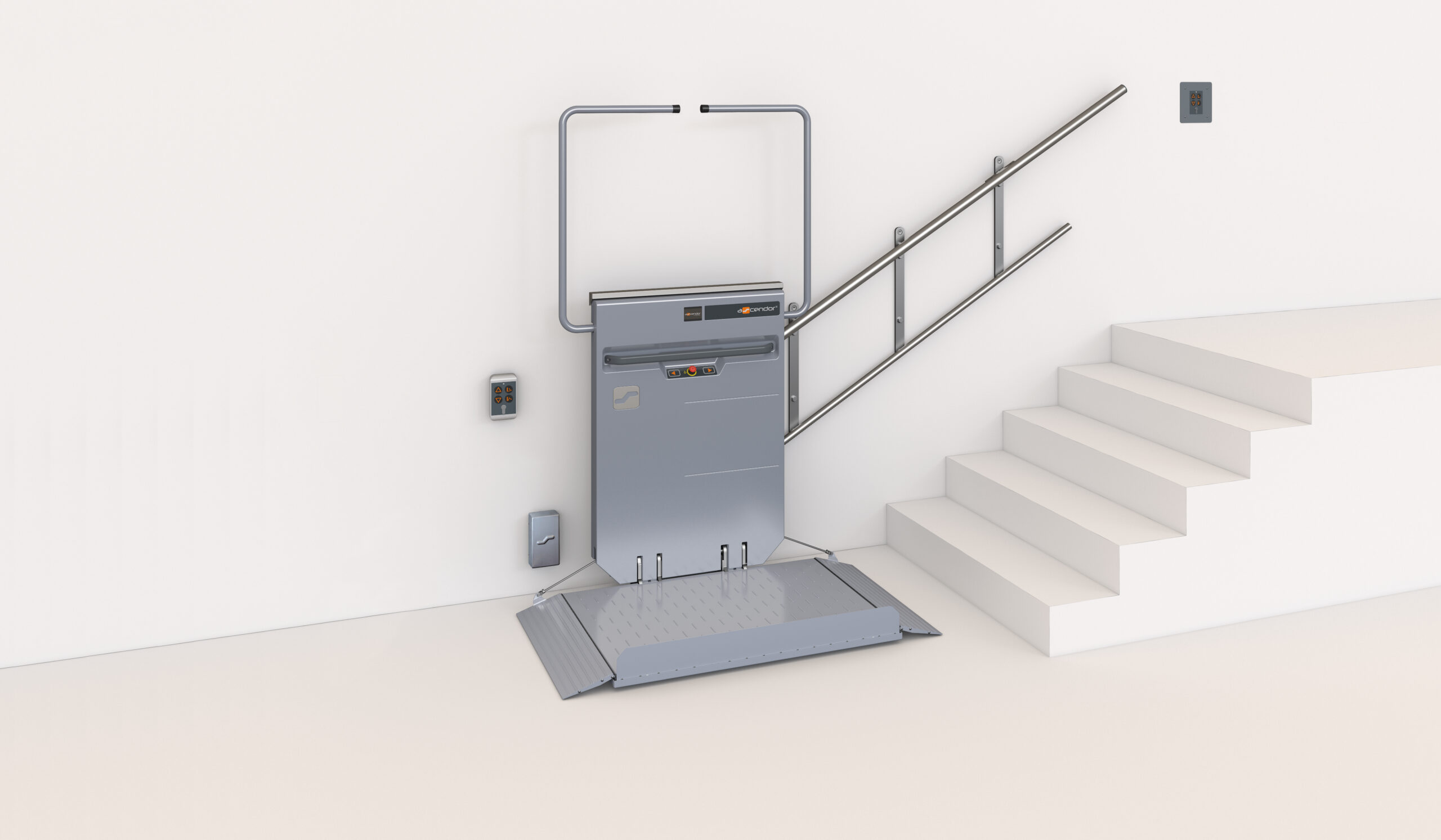

Ascendor PLG7 & PLK8 Platform Stairlift

Not every building has the space, layout, or need for a vertical platform lift. The Ascendor range follows the existing staircase instead, carrying wheelchair users between levels while leaving the stairs available when the platform is folded away.

Choose the PLG7 for straight stairs or the PLK8 for curved and more complex routes. Both can be wall or stanchion mounted, with platform sizes and control options to suit different commercial settings and users.

  • Straight or curved: PLG7 for straight stairs; PLK8 for curved and complex routes
  • Capacity: 225 kg standard; 300 kg optional
  • Indoor & outdoor: IP54 rated for outdoor use
  • Battery powered: 24V drive with charger
  • Compact: 255–315 mm when folded
  • Platform sizes: 13 options available

GET A QUOTE VIEW THE BROCHURE

  • Standard Features
    • Fully automated platform and safety arms
    • Stainless-steel handrail and drive rack
    • Smooth start/stop with reduced speed on curves
    • Touch controls with full-colour status and fault display
    • Wireless key-operated wall control as standard
    • Handheld and wireless joystick controls
    • Automatic platform folding
  • Optional Features
    • Automatic voice output
    • 400 mm × 400 mm folding seat, rated to 115 kg
    • RGB LED lighting and personalised platform design
    • Handheld, keypad, and wireless joystick controls
    • Two-way emergency call system with SMS remote enquiry
  • Technical Specifications
    • Capacity: 225 kg standard; 300 kg optional
    • Speed: Up to 9 m/min
    • Inclination: 6–47°; 50° optional
    • Folded depth: 255–315 mm
    • Drive: 24V battery with charger
    • Construction: Powder-coated steel/aluminium with galvanised steel supports
    • Cover: Scratch-resistant plastic
    • Standard finish: RAL 9006 silver metallic
    • Optional finishes: RAL colours or stainless steel
    • Protection: IP54 for outdoor use
    • Certification: POTA EC-Type Examination to Directive 2006/42/EC; ISO 9001 quality management
  • Platform Sizes & Space Requirements

    Platform size: 800 × 1250 mm as standard, with 13 platform sizes available to suit different staircase layouts and space requirements.

    Folded depth: 255–315 mm, depending on platform size and configuration.

    Stainless steel platforms are also available in selected sizes.

    Exact space requirements depend on the platform size, staircase angle, mounting method, and PLG7 or PLK8 configuration.

  • Safety & Controls
    • Automated safety arms and platform
    • Safety contacts on all sides
    • Anti-slip platform surface
    • Emergency stop and emergency call buttons
    • Electrical emergency operation
    • Battery operation during power cuts
    • Automatic battery-protection shutdown during extended periods without charge
    • Integrated fault memory and event history
    • Wireless key-operated wall control as standard
    • Colour display with status, fault, and remedy information
  • Installation & Removals

    We have over 25 years of platform lift installation experience. What that has brought us is the knowledge, experience and expertise to complete platform lift installations efficiently and to the industry’s highest standard.

    As part of the installation of a new platform lift, we can often offer a removal package to safely remove an old or non-functioning platform lift ready for the installation of one of our new platform lifts.

  • Downloads

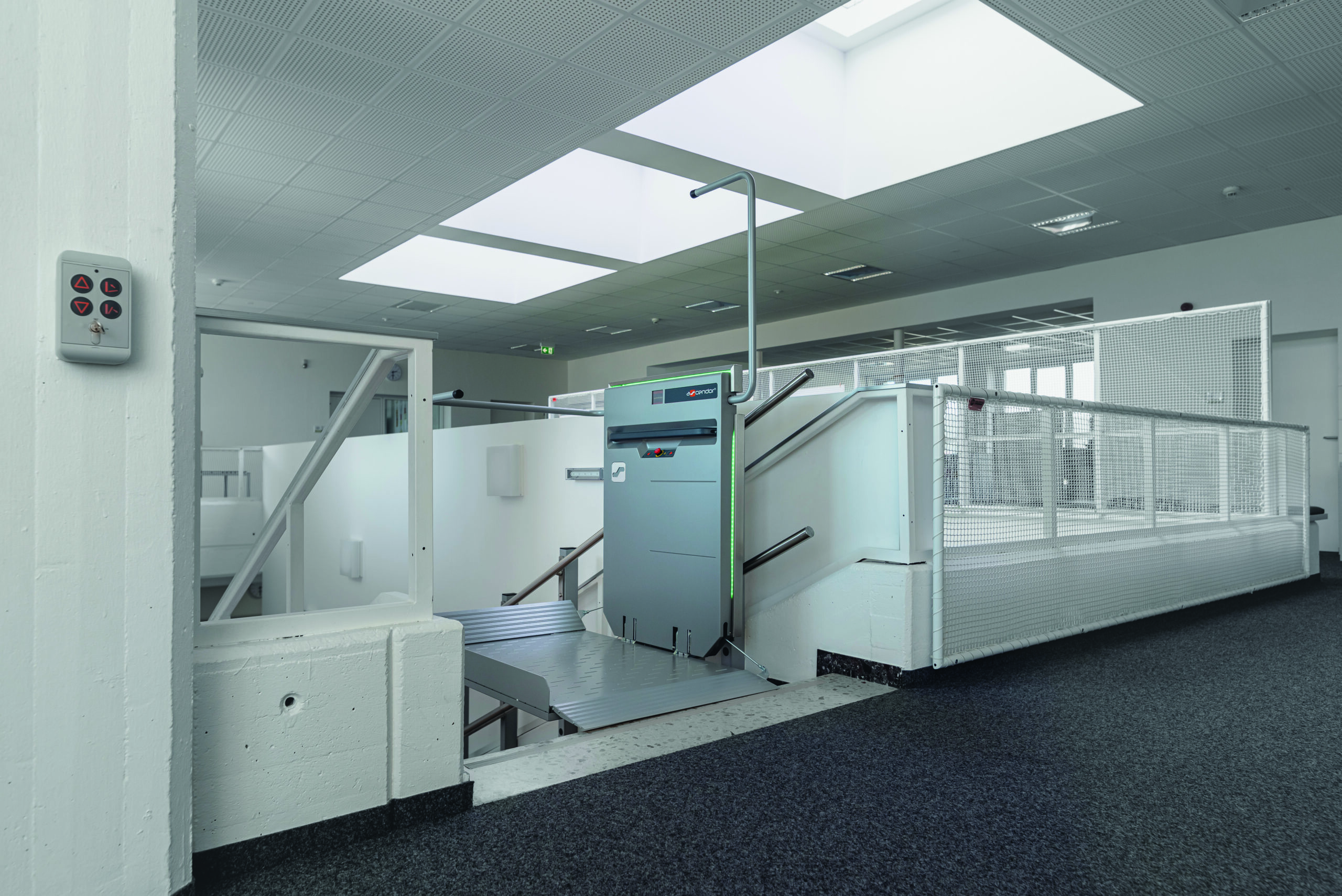

Straight, Curved or Somewhere in Between?

A simple straight flight of stairs calls for the PLG7. If the route needs to negotiate curves, changes in direction, intermediate landings, or different levels, that’s where the PLK8 comes in.

There’s flexibility in how we approach the installation, too. Rails can be fixed directly to a suitable wall or supported on steel stanchions, giving us more options when working around an existing staircase. The upper stainless-steel rail can also serve as a handrail, subject to the relevant standards.

For more involved routes, the PLK8 can accommodate changes in rail elevation and multi-level landings, with parking positions planned at different levels where needed. That gives us more scope to configure the lift around the staircase you already have.

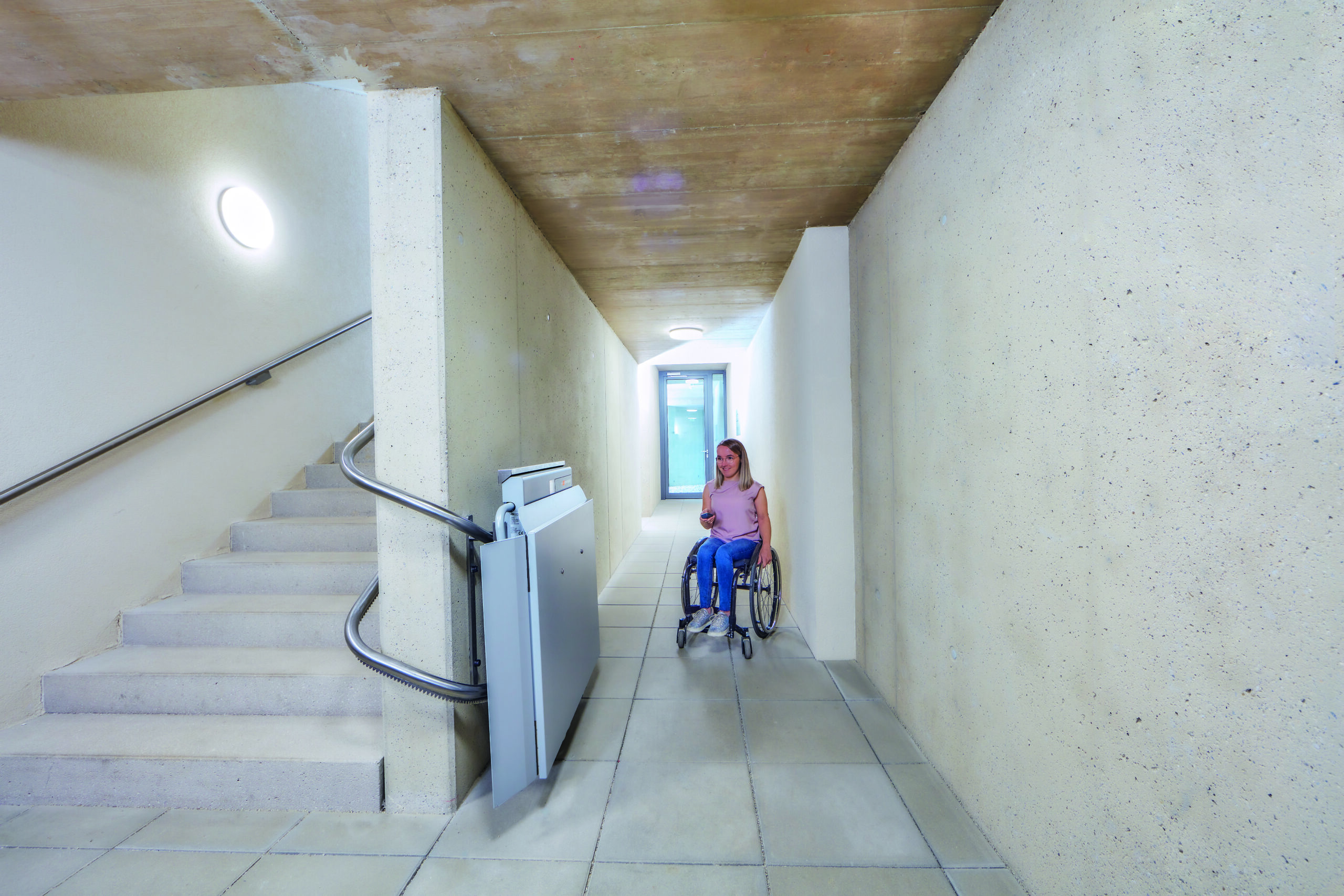

Keep the Stairs Clear When the Lift Isn’t Needed

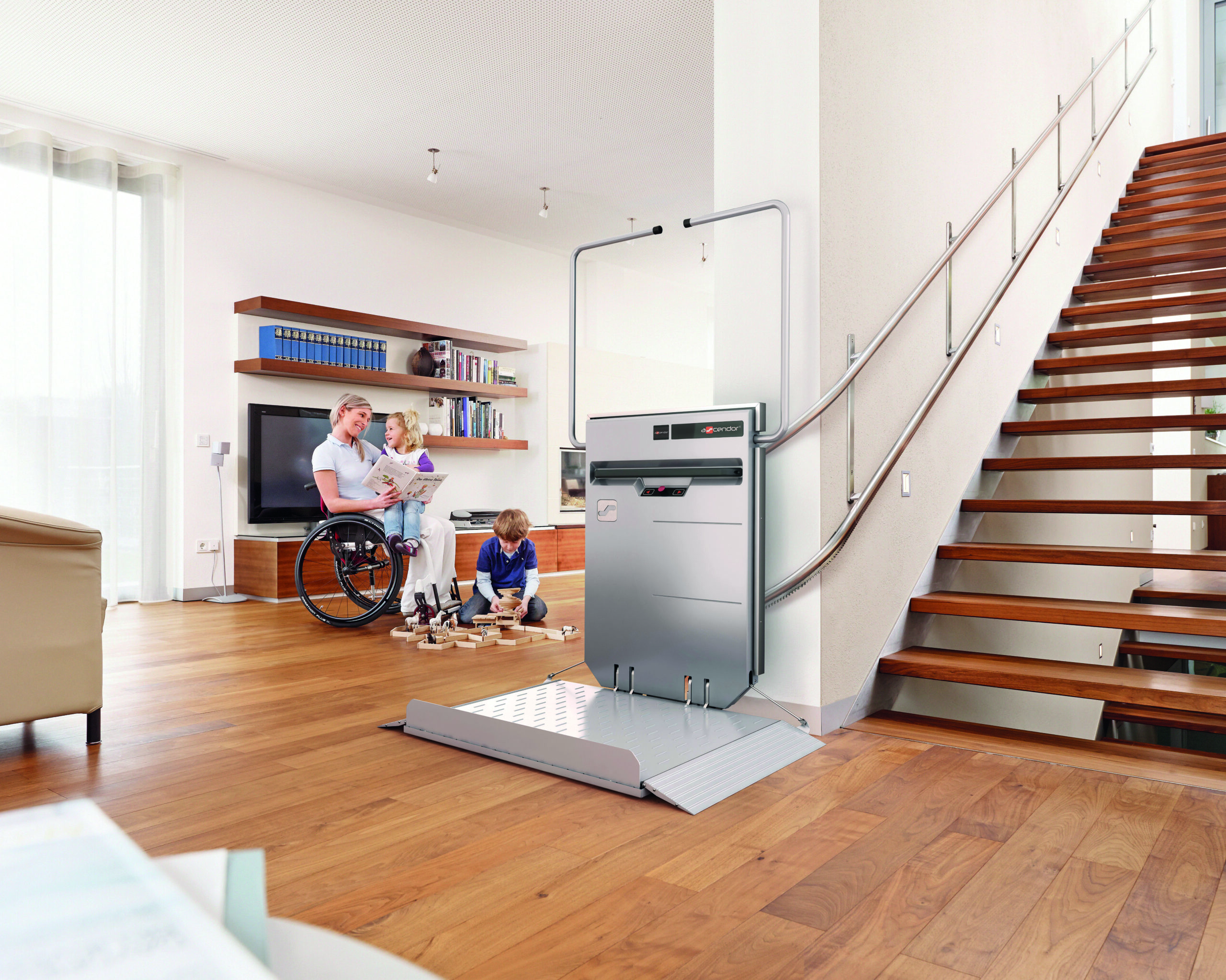

Space matters, particularly on staircases that still need to work normally throughout the day. When parked, the Ascendor platform folds away to take up just 255–315 mm, helping to keep the staircase clear for other users.

Depending on the building, we can look at wall-mounted or steel-stanchion-supported rails, alongside different platform sizes, to find a configuration that works with the available space.

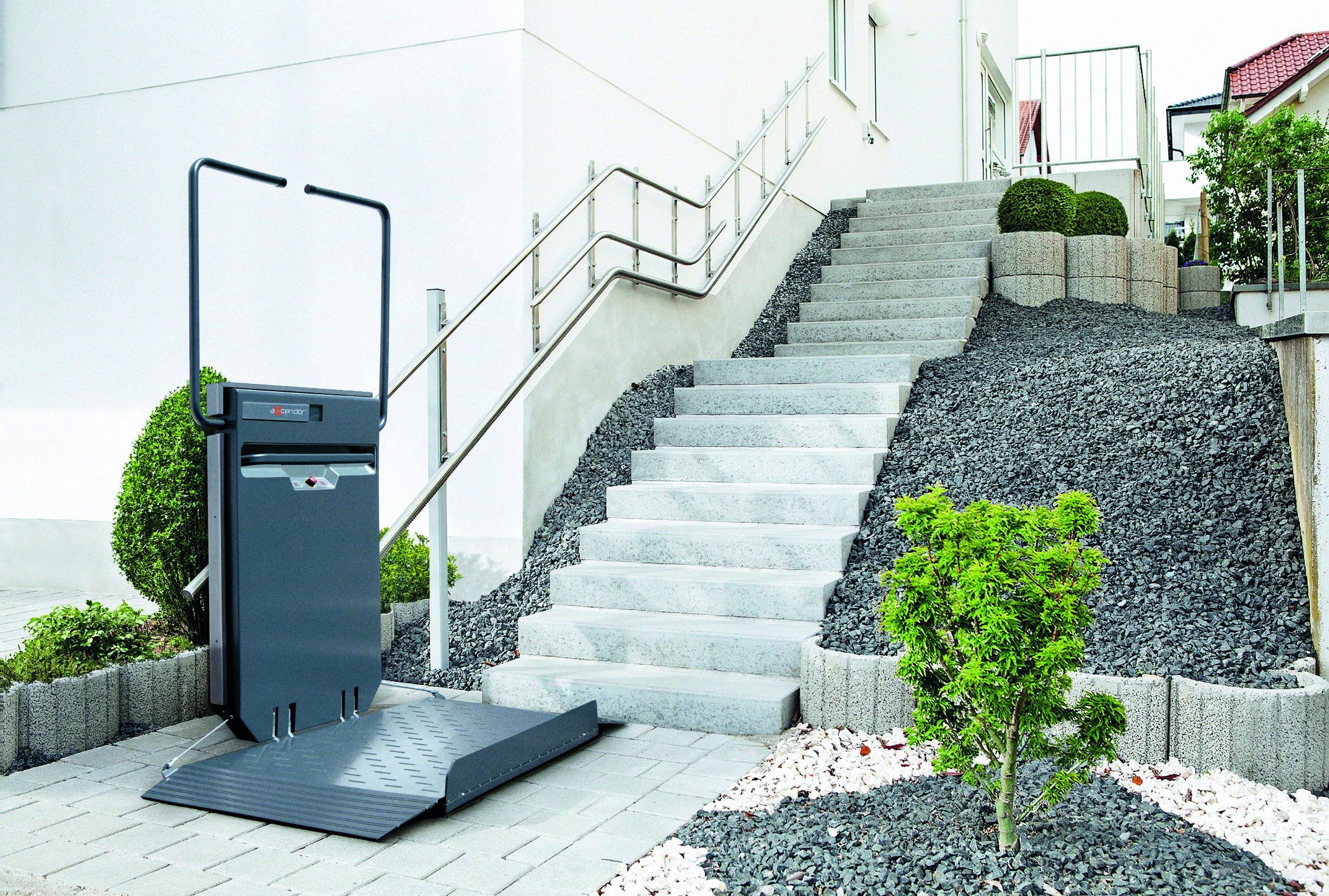

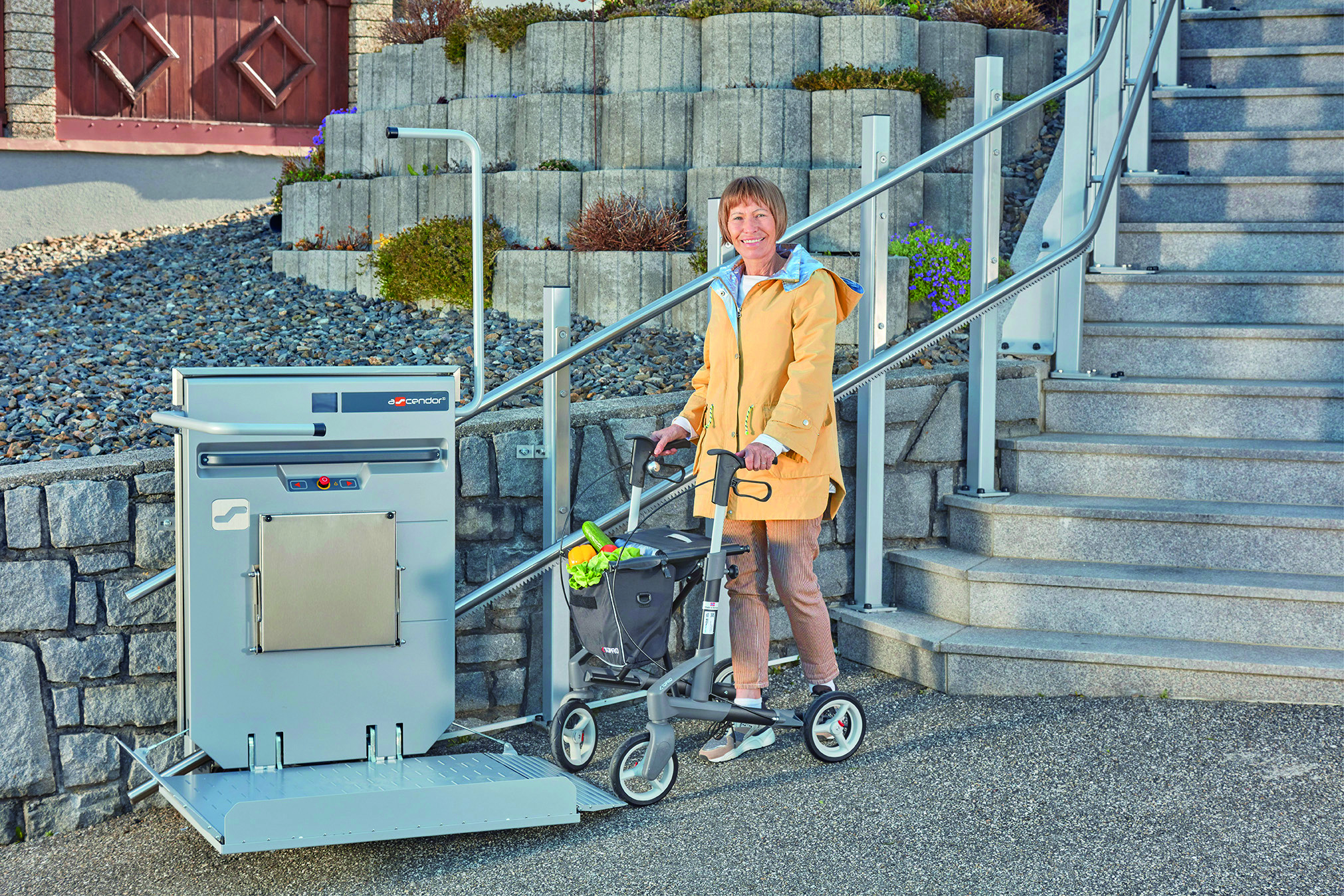

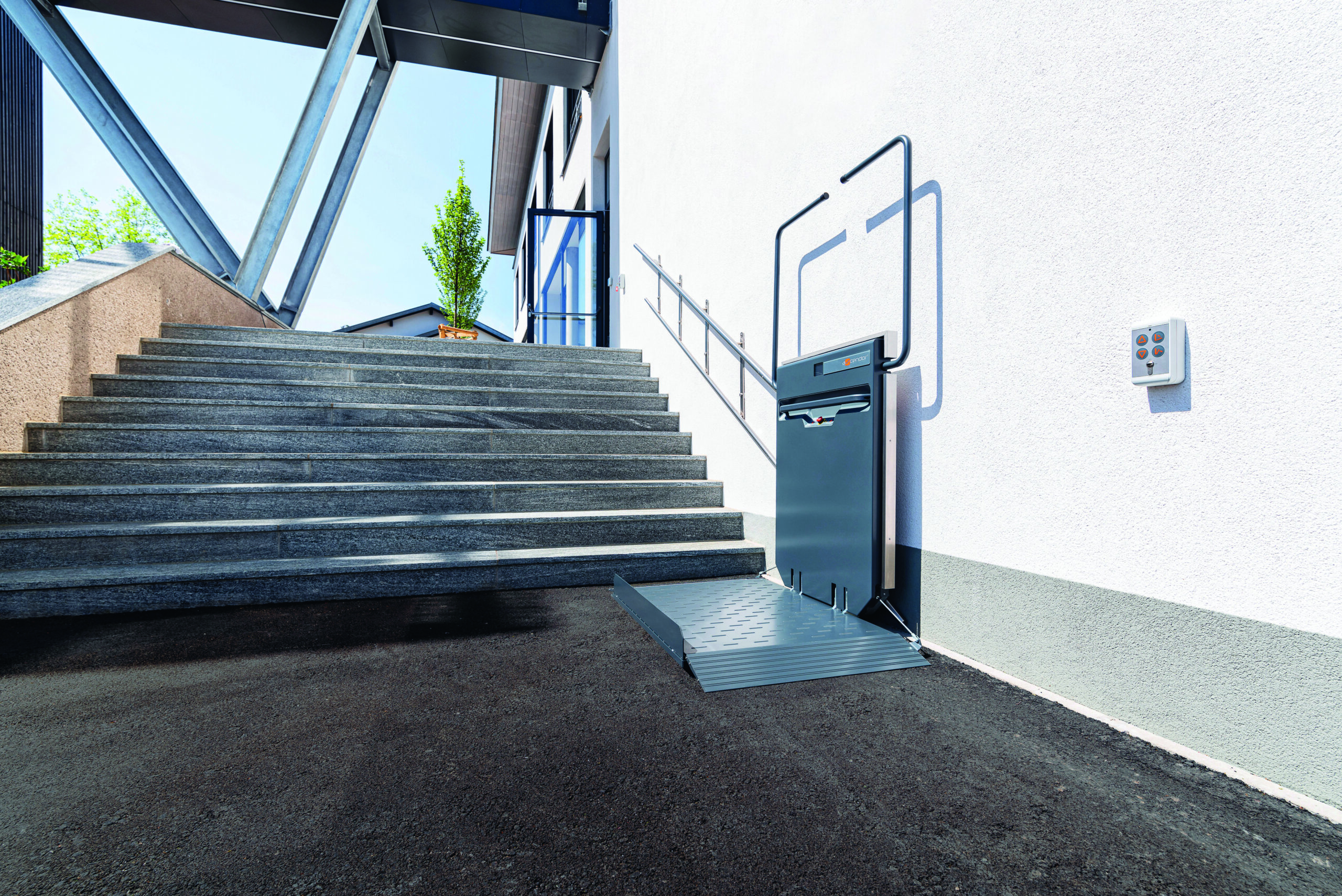

Suitable Inside and Out

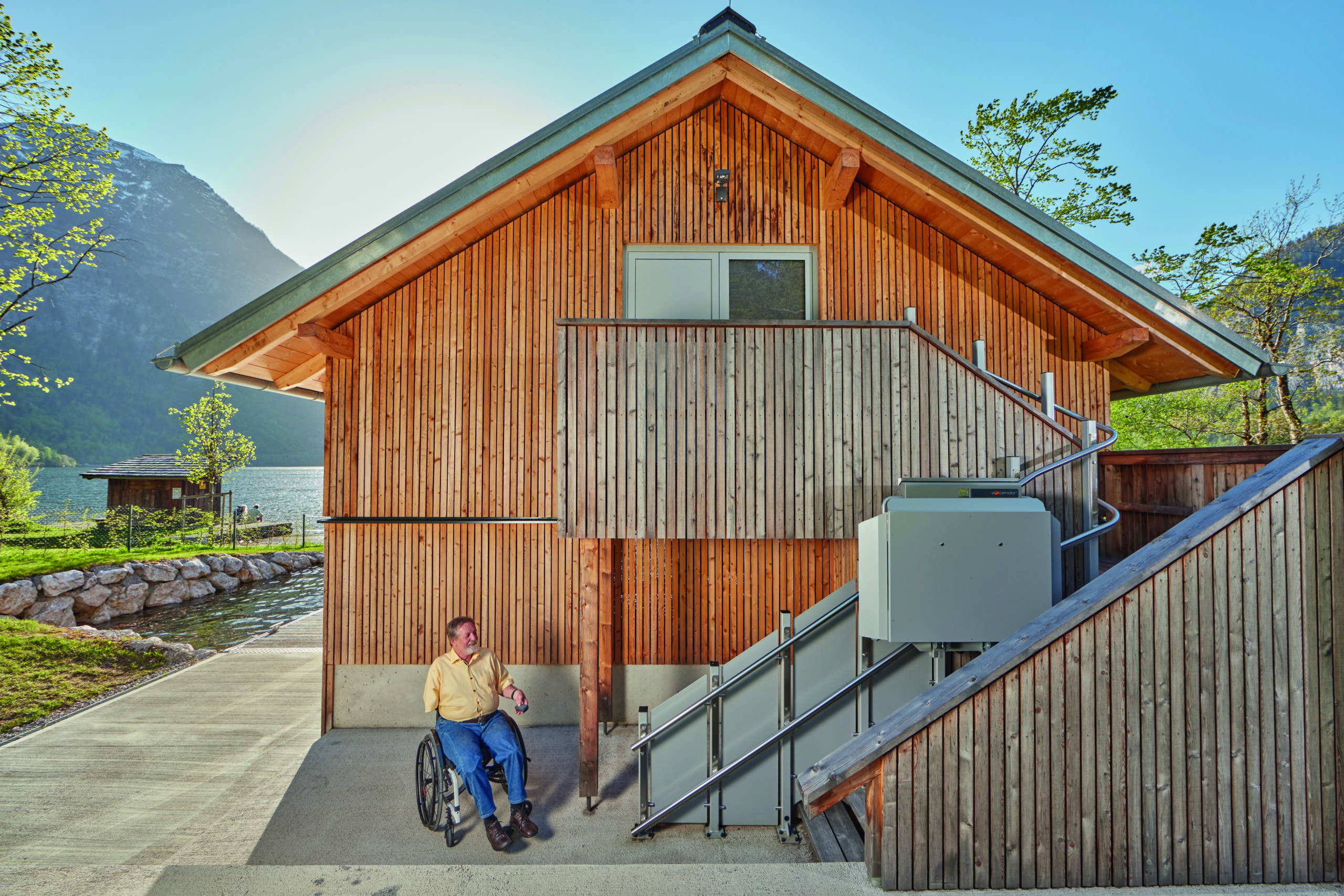

The PLG7 and PLK8 aren’t limited to internal staircases. With an IP54 protection rating, they can also be specified for outdoor installation. That makes the range an option for stepped entrances and outdoor access routes as well as stairs inside the building.

Simple for People to Use Every Day

Accessible equipment needs to be straightforward to use day to day. The Ascendor keeps operation simple, with automated platform and safety-arm operation, onboard touch controls, and smooth start/stop movement. On curved routes, the lift automatically reduces its speed around bends.

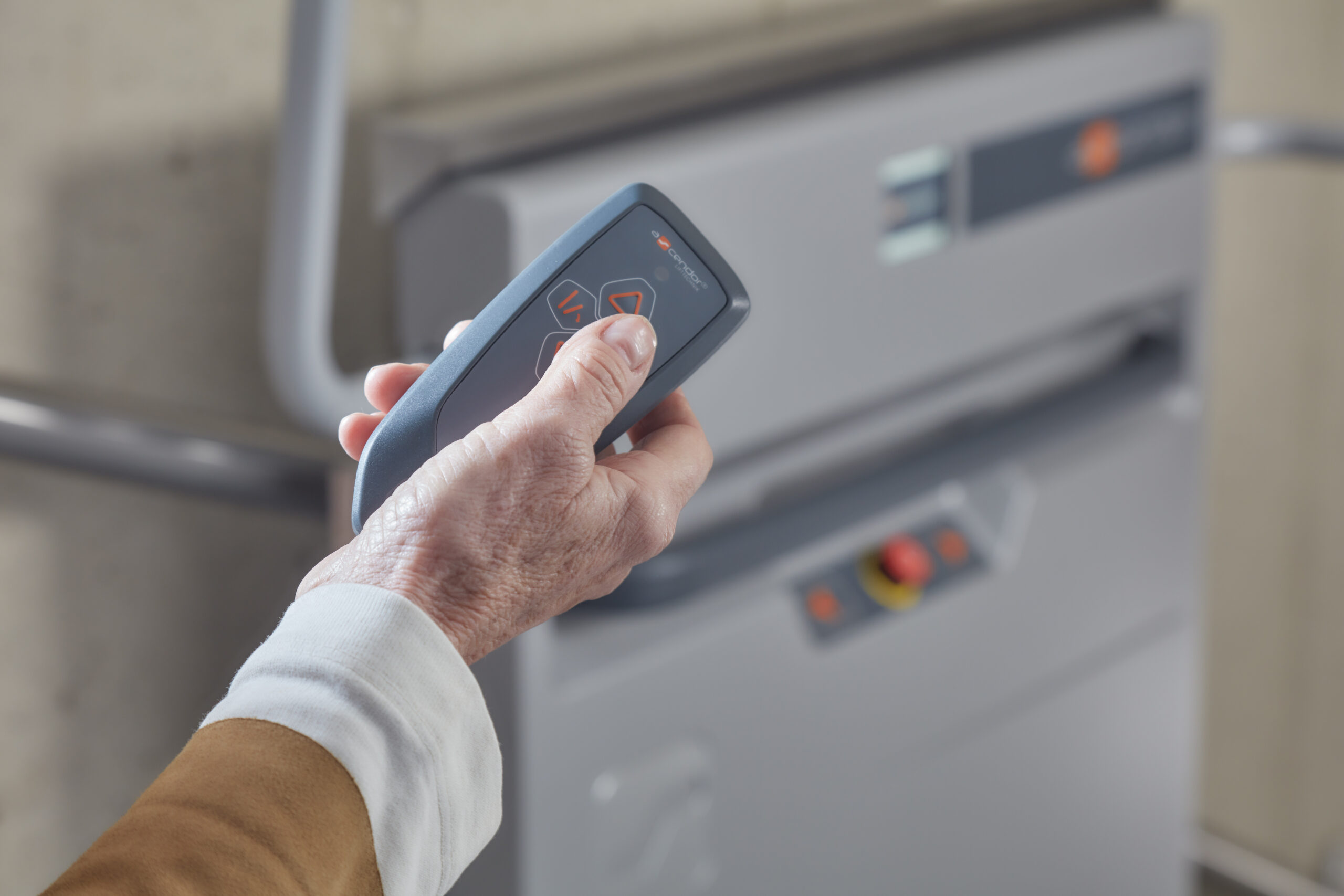

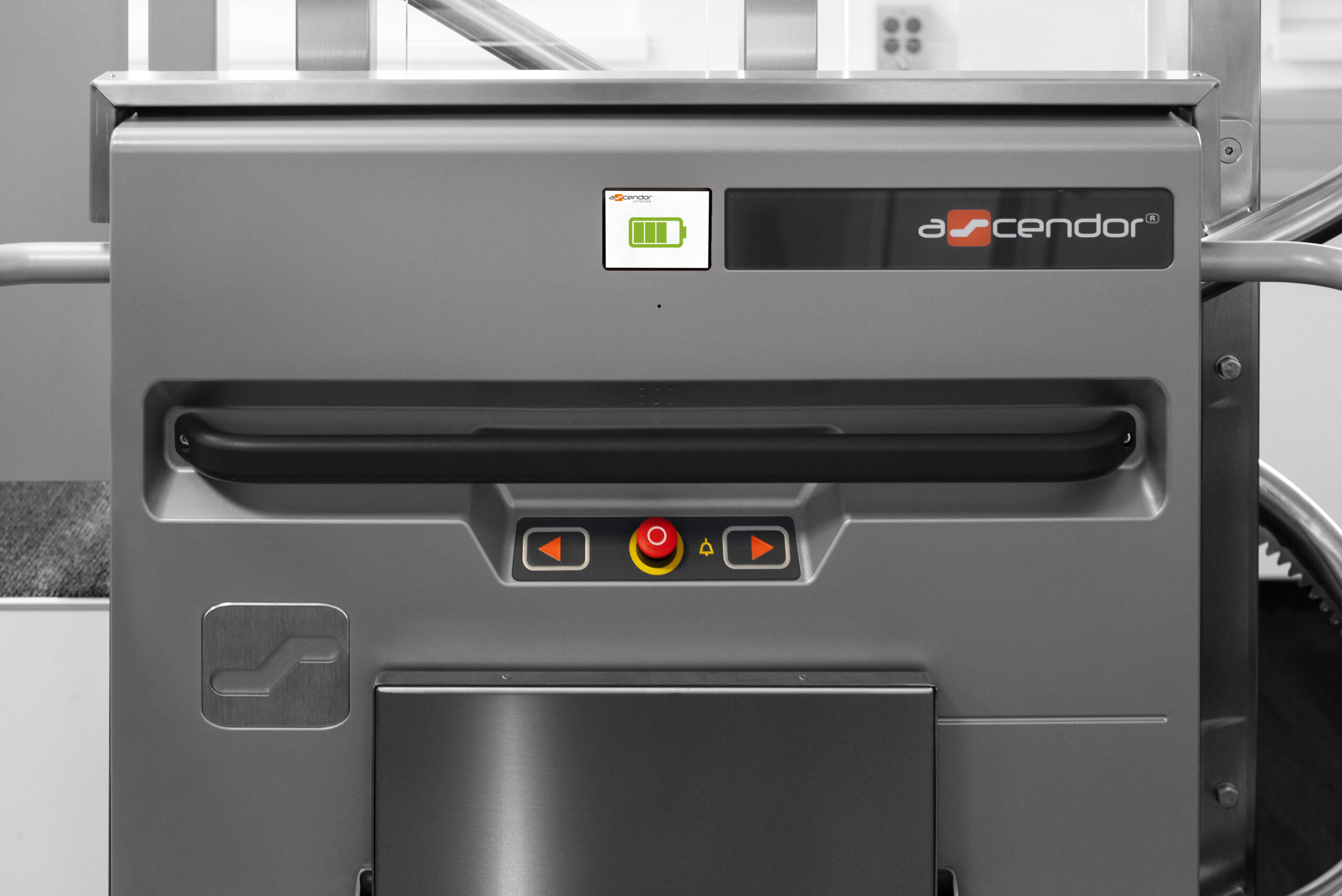

A full-colour display shows the lift’s operating status and can provide fault information and possible remedies. There’s also automatic voice output, while wall-mounted and handheld control options give users different ways to call and operate the lift.

For people with walking difficulties who don’t need to travel in a wheelchair, an optional folding seat can also be specified.

Testimonials

Access Doesn’t Stop with a Power Cut

The PLG7 and PLK8 travel using a 24V battery drive, so a mains power failure doesn’t immediately take the platform stairlift out of service. The lift can continue operating between stops using its battery supply.

If power remains unavailable for an extended period, the system automatically switches off to conserve the batteries until charging can resume.

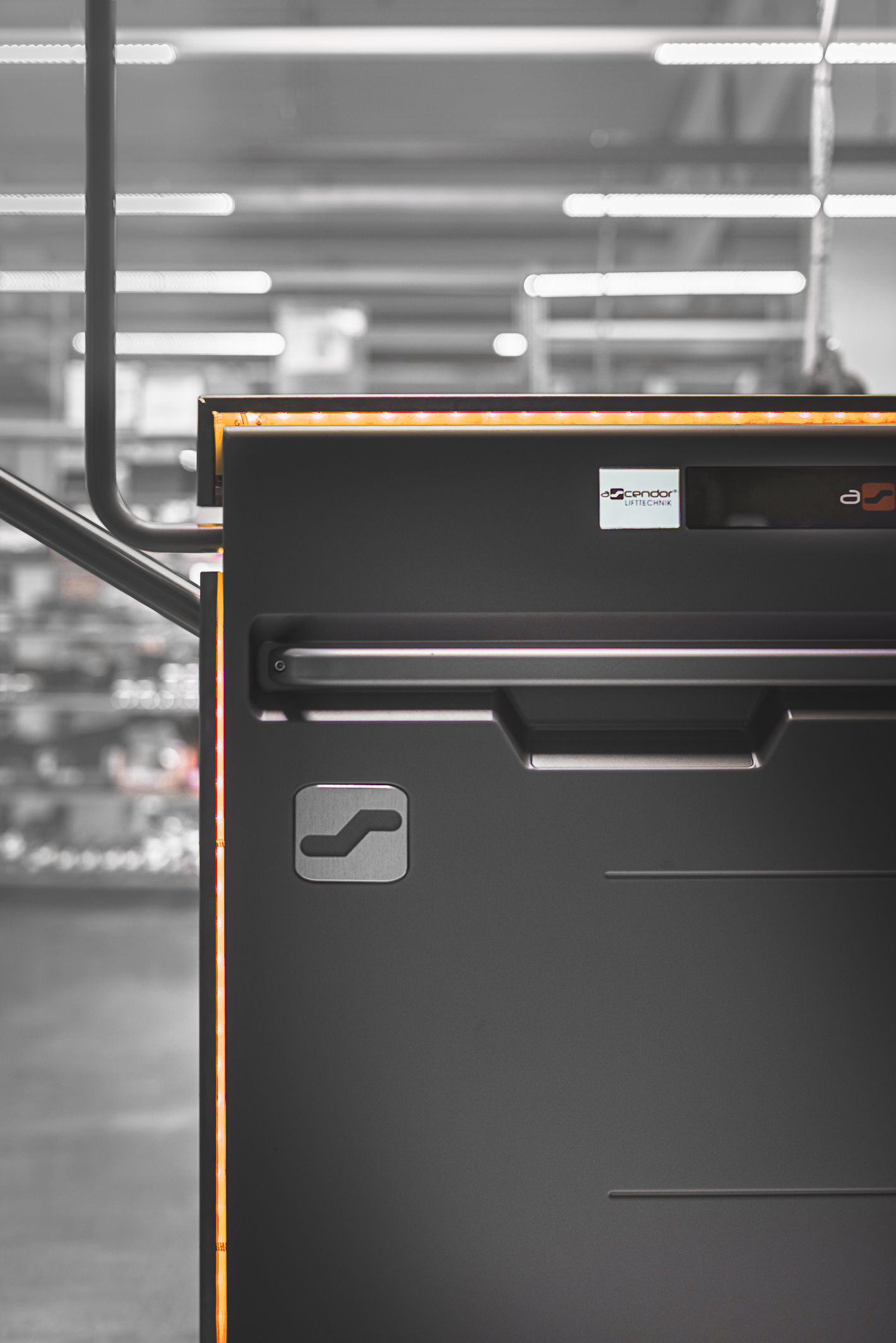

Finishes and Design Options

The standard Ascendor finish is RAL 9006 silver metallic, with other RAL colours available where the lift needs to work with an existing interior or architectural scheme. A stainless-steel finish is also available.

Further options include RGB LED lighting and personalised graphics for the platform contact tray. These give architects and project teams more scope to consider how the finished lift sits within the building.

Is the Ascendor PLG7 or PLK8 Right for Your Project?

Getting the right result starts with understanding the staircase, who needs to use it, and how the building works day to day. We can work through the route, available space, platform size, mounting method, and other site requirements before recommending the right Ascendor configuration.

Invalifts also provides ongoing servicing, maintenance, repairs, spare parts, and technical support after installation.

Our Clients

Got a Staircase Creating an Access Problem?

Send us the details or speak to our team. For users who need to overcome an access problem or replace an existing stairlift, we’ll assess your staircase and help you find the right solution for the project.

GET A QUOTE CALL OUR TEAM

FAQs

  • What’s the difference between the Ascendor PLG7 and PLK8?

    The PLG7 is for straight staircases. The PLK8 is for curved and more complex routes, including bends, intermediate landings, and changes in rail elevation.

  • Can the Ascendor platform stairlift be installed outside?

    Yes. Both models are IP54 rated and can be specified for outdoor use, making them suitable for outdoor steps and access routes as well as indoor staircases.

  • What weight can the Ascendor PLG7 and PLK8 carry?

    The standard carrying capacity is 225 kg, with an optional 300 kg capacity available.

  • How much space does the platform stairlift require when folded?

    When folded, the platform requires 255–315 mm. The exact space needed will depend on the chosen platform and installation configuration.

  • Can the PLK8 go around corners and across landings?

    Yes. The PLK8 is intended for more complicated routes and can accommodate curves, intermediate landings, changes in rail elevation, and multi-level configurations.

  • What happens to the lift during a power cut?

    The lift runs on a 24V battery drive, allowing it to continue operating if the mains supply fails. If it remains without charge for an extended period, the system automatically switches off to conserve the batteries.

  • What platform sizes are available?

    There are 13 platform sizes, ranging from 800 × 650 mm to 1300 × 800 mm. The right size will depend on the intended users, staircases, and available space.

  • Can the Ascendor be customised?

    Yes. Options include alternative RAL colours, stainless-steel finishes, RGB LED lighting, personalised platform graphics, and a folding seat.
